Minisforum UM790 Pro vs Beelink SER8: Ultimate Mini PC Shootout
Side-by-side spec comparison of Minisforum UM790 Pro vs Beelink SER8. Sourced specs on Ryzen 9 7940HS vs Ryzen 7 8845HS, cooling, ports, and noise.

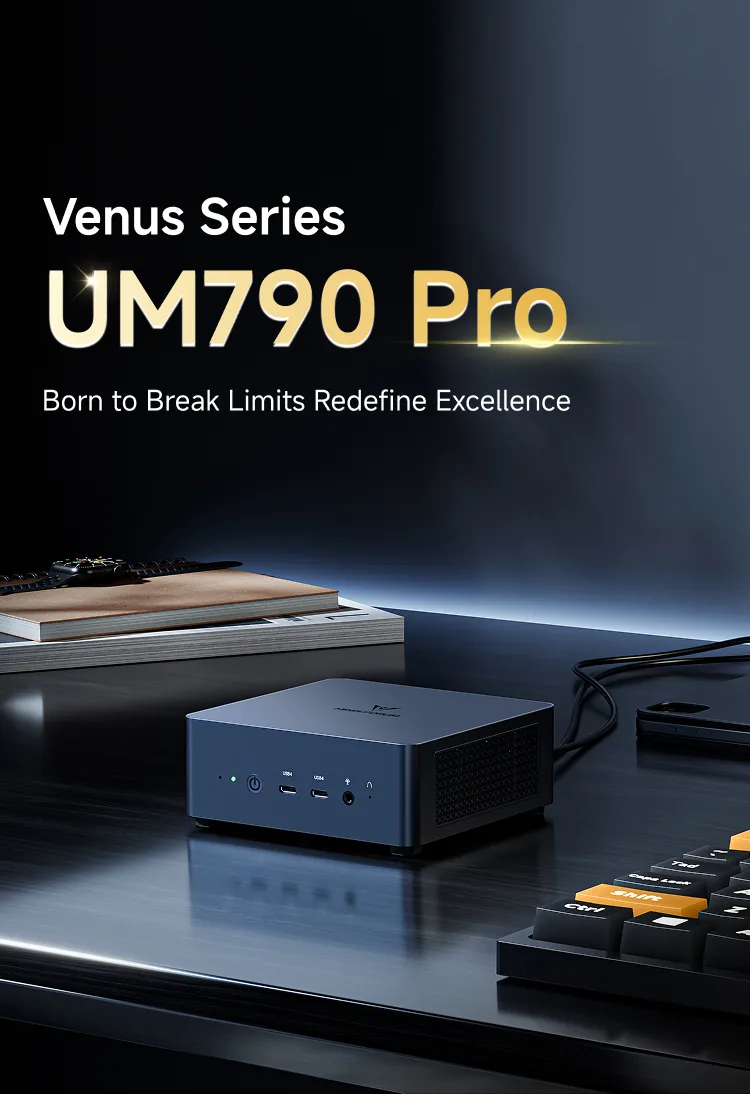

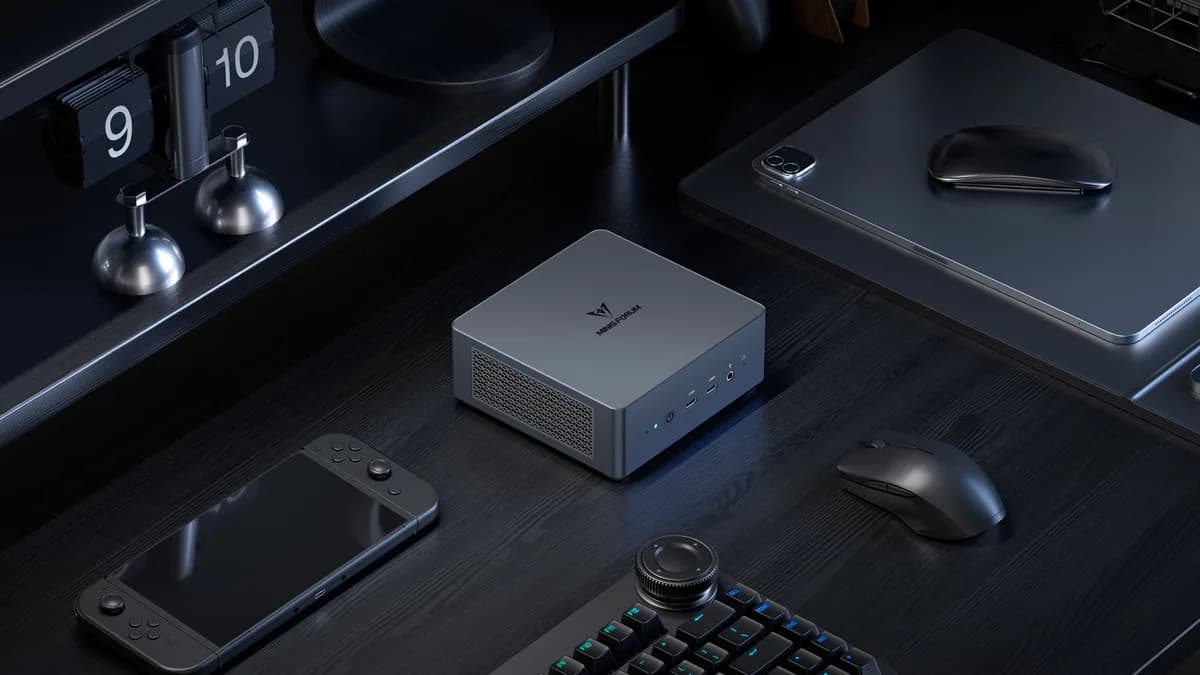

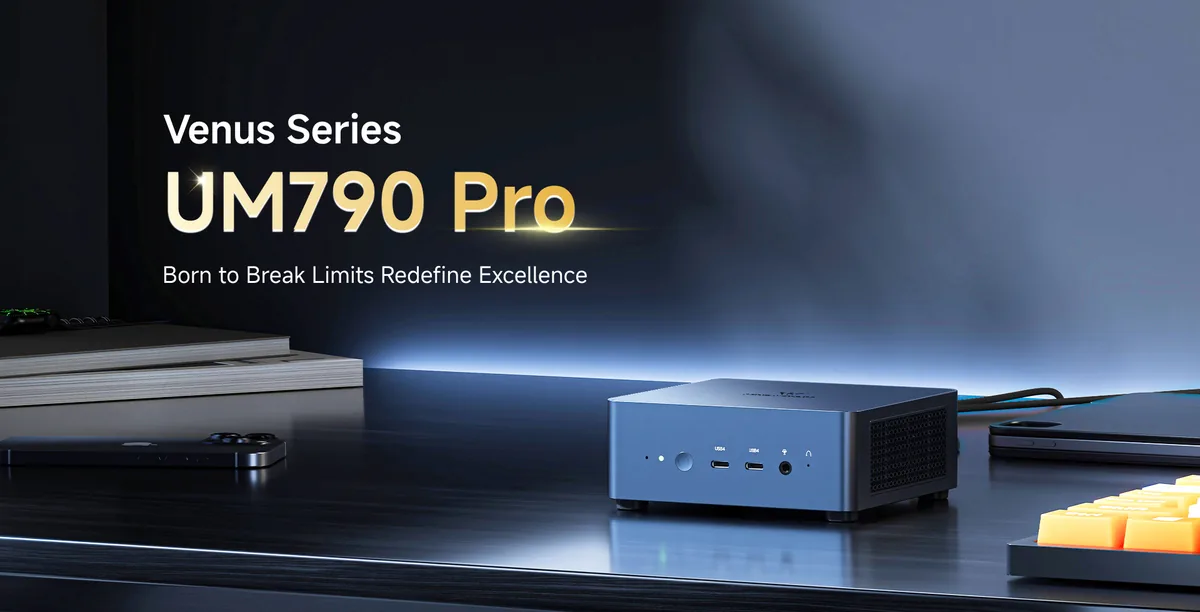

Minisforum UM790 Pro
High-performance 0.85L mini PC powered by AMD Ryzen 9 7940HS with dual USB4 and dual HDMI 2.1.

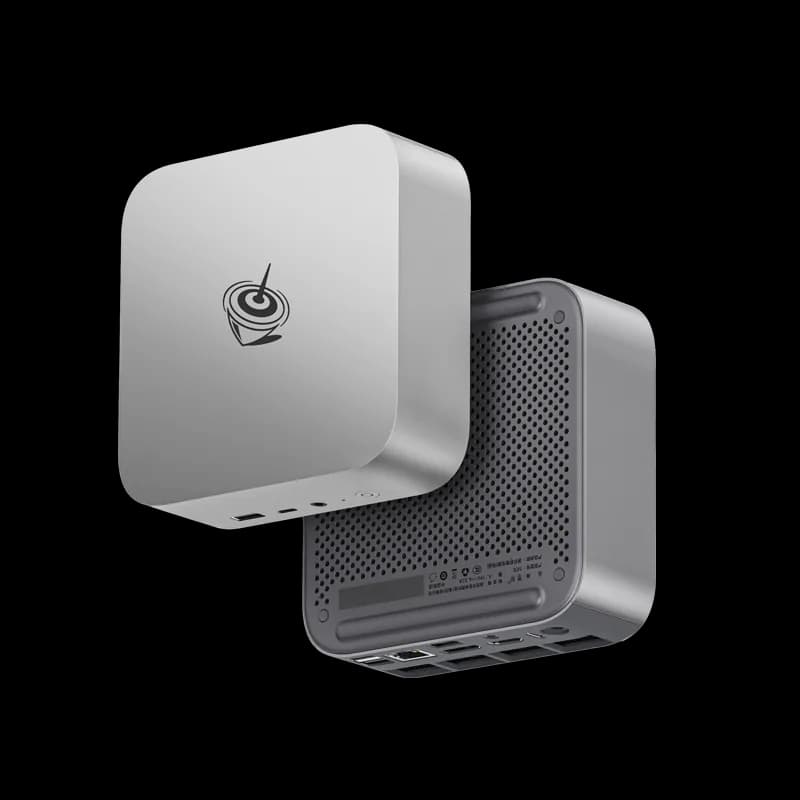

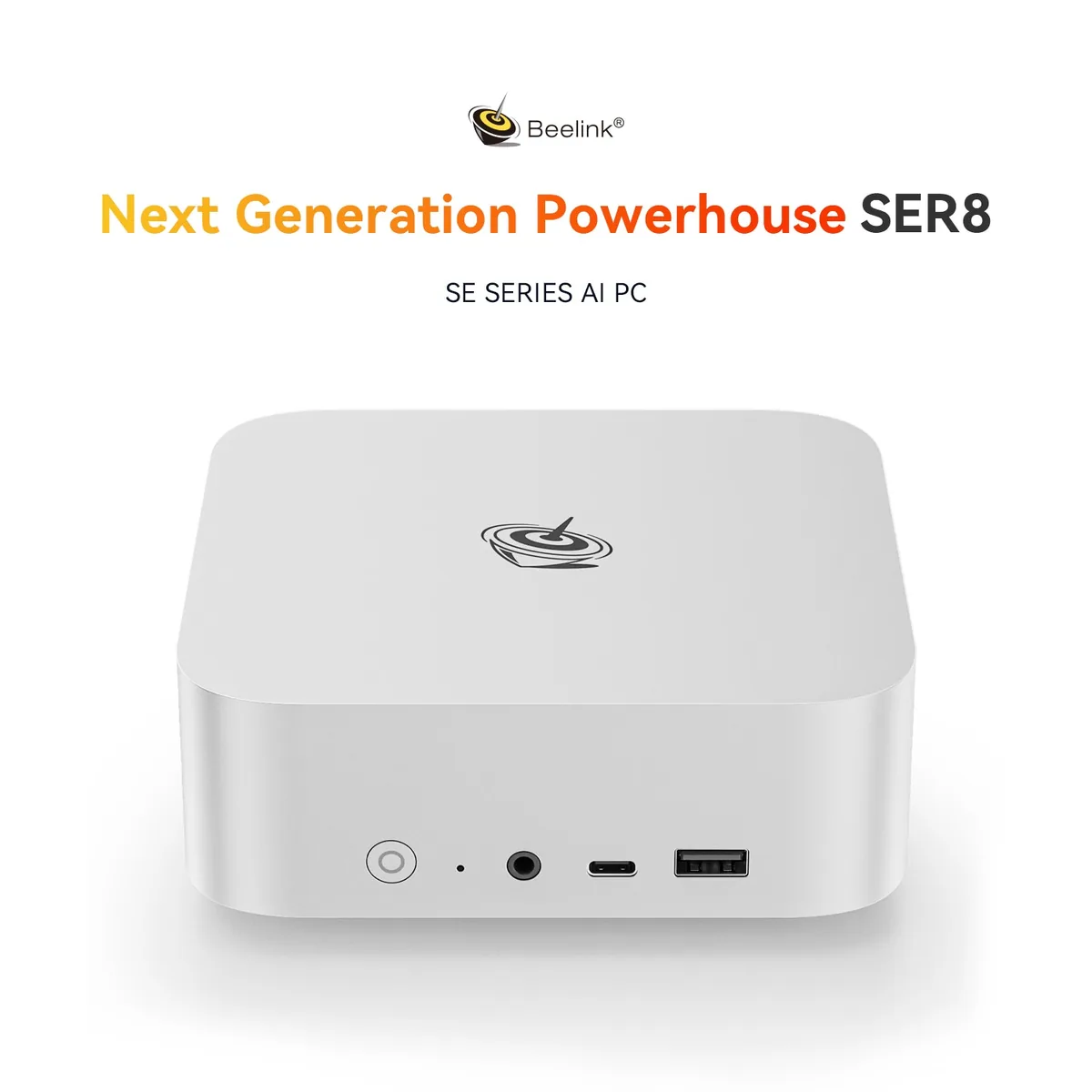

Beelink SER8
Near-silent CNC metal unibody mini PC with AMD Ryzen 7 8845HS and high-density bottom dust filter.
Which One Should You Choose?
The Minisforum UM790 Pro is the power-user champion for multi-monitor workstations and eGPU expansion thanks to its dual USB4 ports and quad-display outputs. The Beelink SER8 is the refined everyday desk companion, winning on whisper-quiet acoustics, premium unibody aluminum aesthetics, and built-in dust filtration.
ABuy the Minisforum UM790 Pro if:
- You need maximum display flexibility (UM790 Pro features 2× HDMI 2.1 and 2× USB4 to drive up to four 4K 120Hz/144Hz displays simultaneously).
- You want dual full-speed 40Gbps USB4 ports for connecting an external GPU (eGPU) and high-speed NVMe storage dock simultaneously.
- You want active thermal heatsink cooling directly on both internal M.2 NVMe SSD slots.
- You prefer the slightly higher peak GPU boost clock (2800 MHz on Ryzen 9 7940HS vs 2700 MHz).
BBuy the Beelink SER8 if:
- You prioritize near-silent acoustics (~32dB under typical loads thanks to its vapor chamber and quiet fan).
- You value premium build quality with a seamless unibody CNC aluminum chassis and bottom metal dust filter.
- You want the newer AMD Ryzen 7 8845HS processor featuring an integrated Ryzen AI NPU for local AI workflows.
- You want dual M.2 2280 PCIe 4.0 slots supporting up to 8TB total storage.
Key Physical & Hardware Spec Bars
Visual comparisons strictly computed from official manufacturer figures. Zero synthetic benchmark guesses.
Size-to-Scale Dimensional Comparison
Real published millimeter dimensions rendered to proportional 1:1 aspect scale.
Width Difference
5.0 mm
Beelink is wider
Height Difference
9.0 mm
Beelink is taller
Thickness (Depth)
7.6 mm
Beelink is slimmer
Full Side-by-Side Spec Comparison
Every spec verified from manufacturer spec sheets. Winner indicated with green badge.
| Specification | Product A Minisforum UM790 Pro | Product B Beelink SER8 |
|---|---|---|
| Processor & ArchitectureProcessor (CPU) & AI NPU | AMD Ryzen 9 7940HS (8c/16t Zen 4, up to 5.2 GHz, 16MB L3 cache, 35–54W TDP; 10 TOPS NPU) | AMD Ryzen 7 8845HS (8c/16t Zen 4, up to 5.1 GHz, 16MB L3 cache, 35–54W TDP; integrated 16 TOPS Ryzen AI NPU, 38 TOPS platform) Trade-off: UM790 Pro has slightly higher maximum CPU clock (5.2 GHz vs 5.1 GHz); SER8 features an upgraded 16 TOPS NPU for AI workloads. |
| Processor & ArchitectureIntegrated Graphics (iGPU) | AMD Radeon 780M (12 CUs, clock frequency up to 2800 MHz) Winner: UM790 Pro has a 100 MHz higher official GPU boost ceiling. | AMD Radeon 780M (12 CUs, clock frequency up to 2700 MHz) |
| Chassis & AcousticsChassis Material & Noise Level | Metal & composite enclosure; audible fan under sustained full multicore loads | CNC integrated aluminum unibody; whisper-quiet vapor chamber cooling (~32dB under load) Winner: SER8 has superior premium aluminum unibody build and noticeably quieter acoustic profile. |
| Chassis & AcousticsDust Protection | Standard ventilation grilles without dedicated mesh filter | High-density metal mesh dust filter on bottom air intake Winner: SER8 bottom dust filter prevents internal dust buildup over months of continuous operation. |
| Display & ConnectivityDisplay Outputs & Multi-Monitor Support | Supports up to 4 displays: 2× HDMI 2.1 (4K@144Hz) + 2× USB4 (8K@60Hz) Winner: UM790 Pro supports 4 simultaneous displays and features dual identical HDMI 2.1 ports. | Supports up to 3 displays: 1× HDMI 2.1 + 1× DisplayPort 1.4 + 1× USB4 |
| Display & ConnectivityHigh-Speed USB4 Ports | 2× USB4 40Gbps ports (Alt DP & Power Delivery) Winner: Dual USB4 ports allow running an external GPU while keeping a 40Gbps SSD dock connected. | 1× USB4 40Gbps port |
| Storage & MemoryInternal Storage Expansion | 2× M.2 2280 PCIe 4.0 NVMe SSD slots with dedicated active heatsink fan | 2× M.2 2280 PCIe 4.0 ×4 SSD slots (supports up to 8TB total, 4TB × 2) Tie: Both provide dual full-length M.2 2280 slots; UM790 Pro adds active cooling fan over the drives. |
| Storage & MemoryMemory (RAM) Capacity | Dual DDR5-5600 SO-DIMM slots (supports up to 64GB) | Dual DDR5-5600 SO-DIMM slots (certified up to 64GB / expandable up to 256GB) Tie: Both feature dual DDR5-5600 SO-DIMM user-replaceable slots. |
| Networking & AudioEthernet & Audio Ports | 1× 2.5G RJ45 LAN, 1× front 3.5mm combo audio jack, DMIC | 1× 2.5G RJ45 LAN, 2× 3.5mm audio jacks (front headphone + rear audio out) Tie: Both feature fast 2.5G wired networking; SER8 provides convenient dual audio jacks. |
Real Pros & Cons Breakdown
Minisforum UM790 ProSummary
Advantages (Pros)
- •Exceptional multi-display connectivity supporting up to four 4K displays simultaneously
- •Dual 40Gbps USB4 ports enable dual external GPU (eGPU) or high-speed dock setups
- •Liquid metal cooling keeps Ryzen 9 7940HS boosting stably without aggressive thermal throttling
- •Dual M.2 2280 PCIe 4.0 NVMe slots with dedicated active heatsink cooling
Trade-offs (Cons)
- •Fan can become audible under sustained full multicore rendering or heavy gaming loads
- •Integrated graphics alone cannot play ray-traced modern AAA titles at ultra settings without FSR
Beelink SER8Summary
Advantages (Pros)
- •Sleek CNC aluminum Mac Studio-like unibody with clean aesthetics and premium rigidity
- •Remarkably quiet operation (~32dB under load) thanks to vapor chamber cooling
- •Washable metal mesh dust filter on bottom intake keeps interior clean over time
- •Dual M.2 2280 PCIe 4.0 slots supporting up to 8TB of high-speed SSD storage
Trade-offs (Cons)
- •Only one USB4 40Gbps port compared to dual USB4 on the UM790 Pro
- •DisplayPort 1.4 + HDMI 2.1 + USB4 setup limits native identical-cable dual HDMI setups without adapters
Official Reveal & Feature Showcases
Official manufacturer footage directly from Valve, ASUS ROG, Lenovo, MSI, Acer, and Minisforum. No third-party commentary.
Minisforum UM790 Pro
MINISFORUM (Official)Minisforum Venus Series UM790 Pro Feature Showcase
Beelink SER8
Beelink (Official)Beelink SER8 Official Design & Vapor Chamber Cooling Showcase
Frequently Asked Questions
Can both of these Mini PCs handle modern gaming?
Both Mini PCs use the AMD Radeon 780M integrated graphics (RDNA 3, 12 CUs). They run esports titles (Valorant, CS2, Rocket League) smoothly at 1080p 60–120fps. For demanding modern AAA games like Cyberpunk 2077 or Black Myth: Wukong, they run comfortably at 1080p Low settings with FSR enabled at 40–55fps. Neither replaces a dedicated discrete GPU desktop.
Can you connect an external GPU (eGPU) to these Mini PCs?
Yes. Both feature 40Gbps USB4 ports that support eGPU enclosures. The Minisforum UM790 Pro has an advantage here because it has two USB4 ports, allowing you to connect an eGPU while still having a spare 40Gbps port for high-speed external storage.
Which one runs quieter under load?
The Beelink SER8 runs noticeably quieter. It uses a vapor chamber thermal solution and near-silent fan curve tuned to roughly ~32dB under typical loads. The UM790 Pro uses Cold Wave 2.0 with liquid metal, which cools effectively but has a smaller, higher-RPM fan over the SSD/RAM that can become audible during intense rendering.
